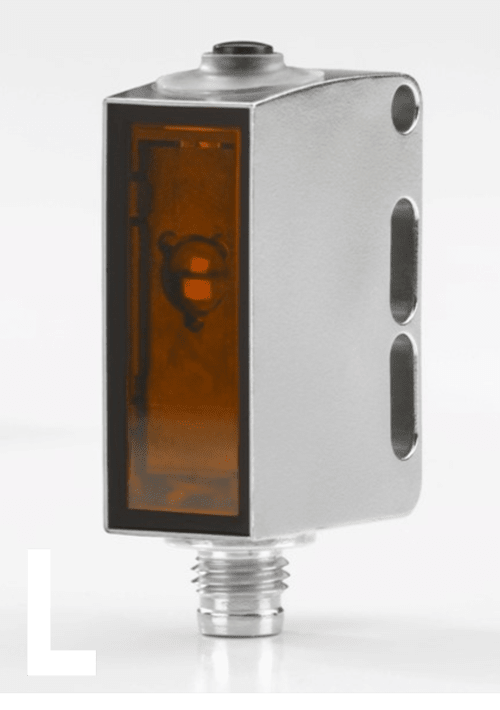

53C and 55C Series

Name: 53C and 55C Series
Brand: Leuze

New Stainless Steel Sensors in Wash-Down and Hygienic Design.

Features

Applications

Benefits

Documentation & Resources

Series 53C and 55C Webpage

Key Features

Technical specifications and capabilities

Operating principle: Retro-reflective photoelectric sensor
Housing design and dimensions (WxHxD): 53C series: Hygienic design (14.0 x 35.4 x 20.4 mm) / 55C series: Wash-Down design (14.0 x 35.4 x 25.0 mm)
Housing material: V4A stainless steel (AISI 316L)
Light sources: Red light (645 nm) / Laser, red (650 nm
laser class 1)

More from Leuze

Switching frequency: 1,500 Hz (red light) / 3,000 Hz (laser, red)

Operating range: 0.1 … 5 m (two-lens) / 0 … 4 m (autocollimation) / 0 … 3 m (detection of transparent objects) / 0 … 2 m (laser: autocollimation) / 0 … 0.4 m (laser: detection of transparent objects)

IO-Link: V1.1 (COM2)

Operation: Teach button

Temperature range: -40 … +70°C

Degree of protection: IP 67, IP 68, IP 69 K

Certifications: CE, UL, ECOLAB, CleanProof+, JohnsonDiversey

Connection: M8 cable, M12 pigtail cable
