C-Lube Linear Way LRX/MX Series

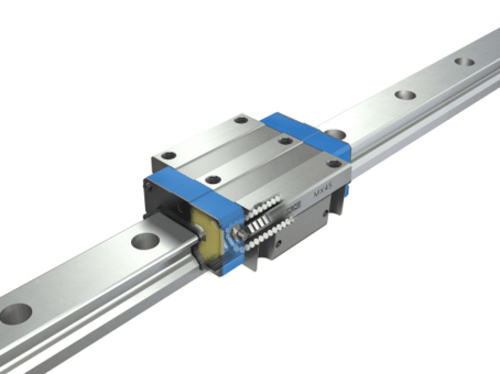

IKO Linear Roller Way Super X is a high-performance roller type linear motion rolling guide with 4 rows of well-balanced cylindrical rollers arranged in parallel.
5
Features
9
Applications
10
Benefits
Sign in to save products and send enquiries. Sign in
More from IKODocumentation & Resources
MX Linear Roller Way Super X Brochure
Sign in to download documentation.
Key Features
Technical specifications and capabilities
- Interchangeable: Interchange specifications are available. Since the slide unit and track rail dimensions are separate, each can be individually added or exchanged.
- Length of Slide Unit: Four types with the same cross-sectional dimensions but different slide unit lengths are available: short type, standard type, long type and extra-long type. Each can be selected according to the application.
- Flange Type and Block Type: Slide unit shapes include a flange type that can be mounted from either the top or bottom, and a narrow block type.
- Dimensional Compatibility with Ball Type: Since the mounting dimensions are the same as the ball type Linear Way H, it is easy to include in the specifications of machines and equipment.
