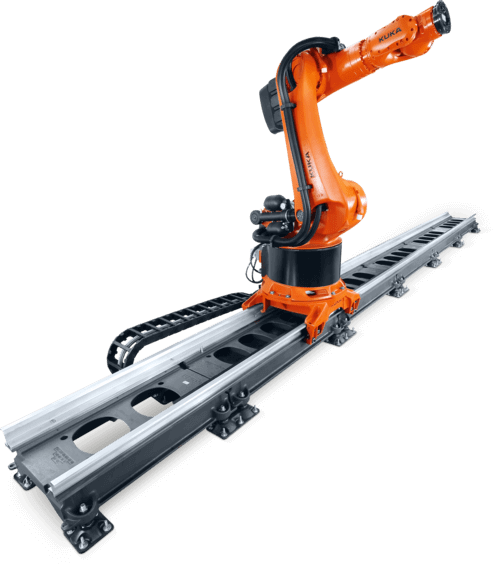

KL 4000 Linear Axis
The KL 4000 is a self-contained, floor-mounted KUKA linear unit. It is operated as the external axis of a robot. Control is executed by the appropriate robot controller.
13
Features
11
Applications
2
Benefits
Sign in to save products and send enquiries. Sign in
More from KUKADocumentation & Resources
KL Linear Guide Brochure
Sign in to download documentation.
Key Features
Technical specifications and capabilities
- Robot types: KR QUANTEC 1 & 2, KR FORTEC
- Mounting position: Floor, ceiling, flex
- Rated payload per carriage: 4,000 kg
- Rated travel: 1-30, 4 m (travel graduation 0.5m) (longer possible as project order)
- Energy supply systems: mounted internal up to (8400mm) or external
- Width
