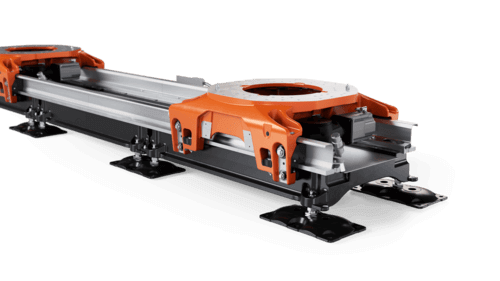

KL 5000 Linear Axis
The KL 5000 linear axis is an external axis with an optional intelligent lubrication system to simplify maintenance. With the KUKA Lubricate Kit, the rack and the track are automatically lubricated during production.
12
Features
11
Applications
11
Benefits
Sign in to save products and send enquiries. Sign in
More from KUKADocumentation & Resources
KL Linear Brochure
Sign in to download documentation.
Key Features
Technical specifications and capabilities
- Robot types: KR QUANTEC-2, KR FORTEC-1 & 2 ultra
- Mounting position: Floor, flex
- Rated payload per carriage: 5,000 kg
- Rated travel: 1 - 30, 4m (travel gradation 0.5m) (longer possible as project order)
- Energy supply systems: mounted internal or external
- Width, basic unit: 1,2m
