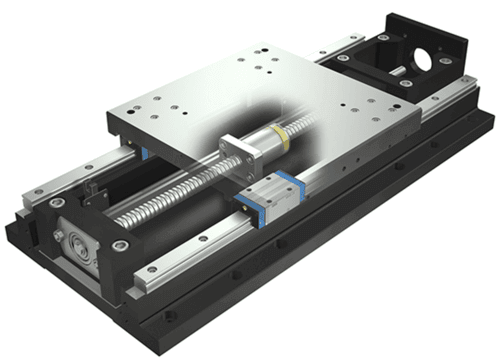

LH & TX Positioning Tables

Name: LH & TX Positioning Tables
Brand: IKO

These tables are designed for applications requiring accurate and controlled linear movement of objects.

Features

Applications

Benefits

Documentation & Resources

TX Product Catalogue

LH Product Catalogue

Key Features

Technical specifications and capabilities

TX Super Precision Positioning Tables:
Ultra-High Accuracy: Built upon the LH series' foundation but incorporates IKO's Linear Roller Way Super MX and a fully-closed loop control system. This combination achieves exceptional positioning accuracy, rivaling air stages.
High Load Capacity: Maintains the LH series' robust build, allowing it to handle significant loads while delivering superior precision.
Minimized Dust Generation: Optional clean grease lubrication makes these tables suitable for cleanroom environments where dust control is paramount.
Simple Design: Eliminates the need for air-supplying equipment, typically required for air slides, resulting in a more compact and cost-effective solution.

More from IKO

LH Precision Tables:

High Rigidity: Constructed with a cast iron base and table for exceptional rigidity and vibration dampening. This ensures stable and accurate positioning even under heavy loads.

Dual Linear Ways: Utilizes two IKO Linear Ways in parallel for enhanced stability and load capacity. This allows for smooth and precise movement over long travel distances.

Precision Ball Screw: Employs a high-precision ball screw for accurate and efficient linear motion. This translates to minimal backlash and consistent positioning.

Multiple Sizes: Available in four table widths (120mm to 420mm) to accommodate various application requirements. Some models offer two-axis configurations for even greater versatility.
