NTP planetary gearbox

Name: NTP planetary gearbox
Brand: Wittenstein

UpGreat! The new NTP – Qualified for more Value.

Features

Applications

Benefits

Documentation & Resources

Alpha Line Technical Brochure

Alpha Line Product Manual

Wittenstein CAD Data

cymex® select Sizing Tool

Key Features

Technical specifications and capabilities

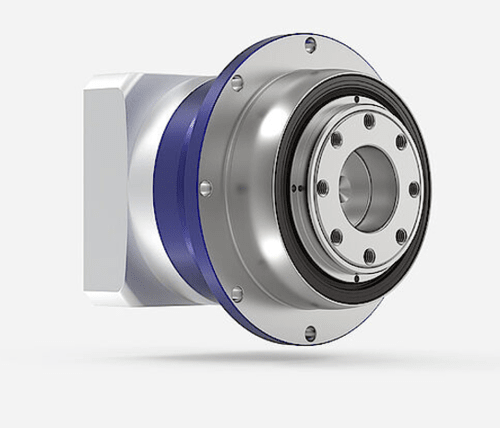

NTP – flange gearbox with reinforced output bearings
The NTP has torsional backlash of ≤ 5 arcmin and is now available in four different sizes from 015 to 045, with maximum torques from 56 to 800 Nm and gear ratios from 4 to 100. Approved, food grade lubricants can be supplied for applications in the food industry. The flange gearbox – which is instantly recognizable from the blue housing with a surrounding design element – can be easily configured with the help of the sizing tool cymex®.
Improved repeat accuracy: With backlash ≤ 5 arcmin, the new toothing class of the product allows it to be used in applications requiring increased levels of precision
Greater absorption of external forces: The use of more powerful roller bearings allows the NTP to absorb significantly higher external forces

More from Wittenstein

The success of the NTP product series is due not least to the fact that users benefit simultaneously from several best-in-class features, for instance low torsional backlash with higher torque density, high tilting moments with improved synchronisation behaviour or high torsional stiffness with increased absorption of external forces. After all, it is now even easier for machine manufacturers to deploy WITTENSTEIN gearboxes in axes with the most diverse requirements – and profit from precisely differentiated prices and performance levels.
