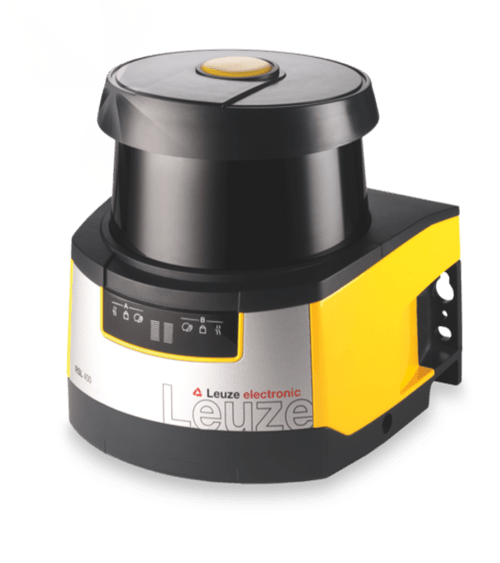

RSL 400
Thanks to their high operating range of 8m and a scanning angle of 270°, they can monitor even large areas.
8
Features
20
Applications
4
Benefits
Sign in to save products and send enquiries. Sign in
More from LeuzeDocumentation & Resources
Leuze RSL Safety Brochure
Sign in to download documentation.
Key Features
Technical specifications and capabilities
- Operating range: up to 8.25 m with 270° scanning angle
- Safety: Type 3, performance level PL d, SIL 2
- Up to 200 configurable fields, as field pairs or 4‑field sets
- 2 parallel and independent protective functions (I/O models), 4 parallel protective functions in PROFIsafe variations
- Configuration and diagnosis via Ethernet TCP/IP, USB (as of RSL 420) and Bluetooth
