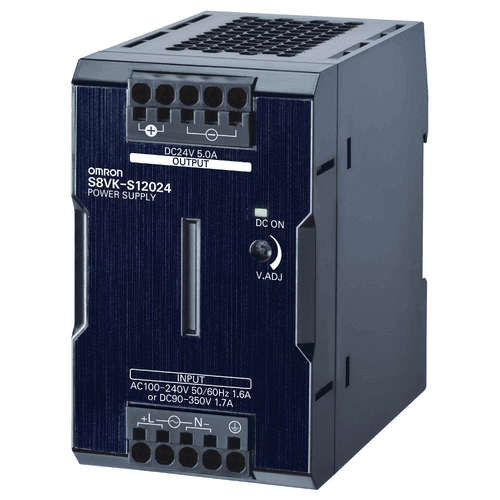

S8VK-S – Power Supply

Name: S8VK-S – Power Supply
Brand: Omron

S8VK-S Power Supplies - A Perfect Fit for Small Control Panels.

Features

Applications

Benefits

Documentation & Resources

S8VK Brochure

S8VK Installation Manual

S8VK CAD Files

Technical specifications and capabilities

A perfect fit for small control panels!
Easy wiring: (Push-In Plus technology) simply push in the wire and the special mechanism within the terminal keeps it firmly in place
Resistant in tough environments: Withstands the harshest environments and provide stable operation over a wide operating temperature range
The most compact design on the market: 50% less volume for the S8VK-S with 480W 36% less volume for the S8VK-S with 120W In comparison with previous model S8VK-G
Side-by-side mounting: With 0 mm spacing contributes to a 30 % less mounting space required

Long-life guaranteed: > 10 years lifetime expectancy - High MTBF figures keep your S8VK power supply running

Build in Control Circuit Transformer: Eliminates the need for an external transformer

Additional Features:

Operation possible at ambient temperatures from –40 to 70°C

DC input supported (90 to 350 VDC)

Power boost function at 120% (60 W and 120 W)

Power boost function at 150% (240 W and 480 W)

Undervoltage alarm (240 W and 480 W)

Side-by-side mounting possible (up to 55°C)

Vibration resistance to 5G, and 300-VAC abnormal input voltage supported for 1 second

PCB coating protects against dust, corrosive gas and humidity

Certification for 3000m altitude
