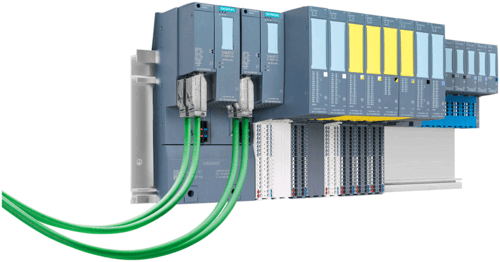

SIMATIC ET 200SP HA
Distributed process I/O: maximum availability and flexibility.
7
Features
19
Applications
22
Benefits
Sign in to save products and send enquiries. Sign in
More from SiemensDocumentation & Resources
SIMATIC ET 200SP HA System Manual
Sign in to download documentation.
SIMATIC ET 200SP HA Distributed I/O System
Sign in to download documentation.
Key Features
Technical specifications and capabilities
- Compact design in modular construction and installation up to ATEX Ex Zone 2 allow an exact adaptation to actual requirements and reduce the footprint of the overall system to a minimum.
- Interface module redundancy with redundant PROFINET connections, I/O redundancy, module replacement and configuration change in runtime (Configuration in Run, CiR) as well as online firmware updates ensure scalable and highest availability.
- High-precision time stamping (Sequence of Events, SoE) enables the display of temporal relationships with a resolution of 1 ms.
- The module redundancy of the SIMATIC ET 200SP HA increases the availability of a channel by a factor of 75. If a module fails, the redundantly plugged module takes over bumplessly. No additional wiring is necessary for the user. The two redundant modules are simply plugged in next to each other on the terminal block provided for this. This function is available for all signal types.
