SIMATIC Fail-Safe Controllers

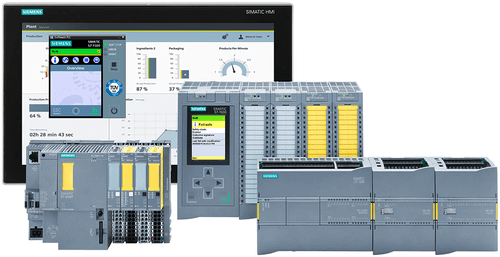

Name: SIMATIC Fail-Safe Controllers
Brand: Siemens

SIMATIC S7-1200F and S7-1500F execute safety program along with standard application programs.

Features

Applications

Benefits

Documentation & Resources

SIMATIC S7-1200/S7-1500 F-CPUs product information

Application example S7-1200 F-CPU

S7-1200 Functional Safety Manual

Application example of the Safety Integrated Functions with the SINAMICS S120 and SIMATIC S7-1500 F-CPU via PROFIsafe

Key Features

Technical specifications and capabilities

S7 1200 F:
Based on S7-1200 standard CPU’s basic controllers offering additional safety related function. Can be used for safety related tasks according to IEC 61508 up to SIL 3 and ISO 13849-1 up to PL e.
Standard and fail-safe automation with just one controller.
PROFINET integrated.
Certified in accordance with EN 61508 2nd Edition up to SIL 3 and EN ISO 13849-1 up to Pl e.

More from Siemens

Integrated diagnostics – rapid fault finding via granular reporting in clear text including globally via webserver.

Maximum manipulation protection - additional password protection for access to F Config and F program.

Communication between fail-safe CPU and fail-safe modules is verified using the PROFIsafe protocol.

Based on S7-1500 standard CPU’s advanced controllers offering scalability in terms of power, memory and quantity structure – future-proof communication with OPC UA and PROFINET, and basic motion control function.

Convenient wiring thanks to pre-wiring position and potential bridges, where the high-density channel can be directly addressed during the engineering.

CPU display/web server for diagnostics, commissioning and service (variable status, alarms, IP address assignment, backup).

The automatic generation of system and user diagnostics enables quick error detection, any errors can be quickly localized on-site thanks to 1:1 LED channel assignment for peripheral systems.
