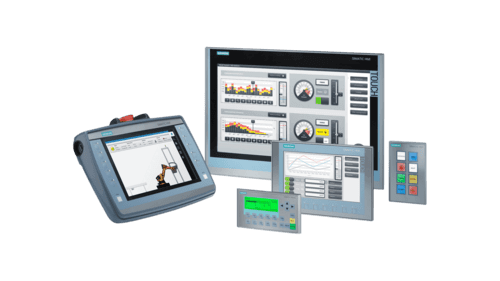

SIMATIC HMI Panels

Name: SIMATIC HMI Panels
Brand: Siemens

Machine-oriented operation, made easy.

Features

Applications

Benefits

Documentation & Resources

Panel-based Basic HMI

SIMATIC HMI Comfort Panels

SIMATIC HMI Mobile Panels 2nd Generation

SIMATIC HMI Unified Comfort Panels

PC-based Advanced HMI

Key Features

Technical specifications and capabilities

Panel-based Basic HMI (Key Panels, Basic Panels):
Range of Key Panels consists of SIMATIC HMI KP8/KP8F/KP32F (key devices with multi-colored LEDs).
All buttons on Key Panels can easily be inscribed in IP65.
On the back of the Key Panels there are integrated IO terminals for connecting actuators and sensors.
Basic Panels include Standard devices of 1st and 2nd Generation, offering Intuitive operation of 4" to 22" display.

More from Siemens

Basic Panels are well suited for the cost-effective implementation of simple visualization tasks at machine level, offering perfect interaction with SIMATIC S7-1200 and S7-1500.

Panel-based Advanced HMI (Comfort, Mobile and Unified Comfort Panels):

Comfort Panels provide special use cases such as IP65-protected PRO devices, panels with a stainless-steel front, outdoor versions, and specially hardened SIPLUS versions.

Comfort Panels offer a widescreen display of 4" to 22" as well as easy commissioning and service concept.

Mobile Panels for high-end mobile applications, with the process communication that can be wired or via WLAN.

Mobile panels are suitable for local operation machines, offering a size range from 4" to 9" displays with integrated security concept.

Unified Comfort high-end, 7–22" operator panels, with rugged multi-touch technology, innovative SIMATIC WinCC Unified visualization software, including Integrated Edge functionality and Remote Client support.

PC-based Advanced HMI (Industrial PC or Open Controller):

Offer the appropriate options for sufficient storage space, processor performance and data connection. Can be used as centralized solution in which the visualization and PC are combined in a single unit, or for a distributed solution with an industrial monitor as Thin Client.
