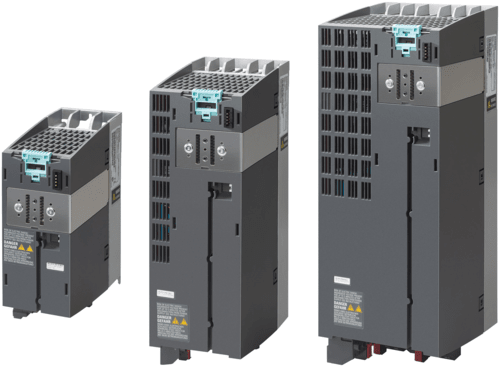

SINAMICS G120 Power Modules

Name: SINAMICS G120 Power Modules
Brand: Siemens

Power modules for the G120 Multifunctional frequency converter for efficient power conversion with a compact design.

Features

Applications

Benefits

Documentation & Resources

G120 Webpage

Hardware Installation Manual PM240-2

Hardware Installation Manual PM250-2

PROFIenergy Overview

Key Features

Technical specifications and capabilities

There are a wide range of G120 Power Modules for the most diverse drive requirements.
SINAMICS G120 PM 240-2:
Available in the following voltage and power ratings -
200V…240V 1AC/3AC 0.55kW…4kW
200V…240V 3AC 5.5kW…55W
380V…480V 3AC 0.55kW…250kW

More from Siemens

500V…690V 3AC 11kW…250kW

In conjunction with a fail-safe control unit, the drive can be transformed into a Safety Integrated Drive FSD/E/F/G – offer additional terminals to achieve STO safety function (SIL 3)

Integrated braking chopper - in generating mode, the excess energy of the DC link can be dissipated by means of an optional braking resistor

SINAMICS G120 PM 250-2:

Voltage and power range- 380V…480V 3AC 7.5kW… 90 kW

Support of safety integrated when used with a fail-safe control unit

Energy recovery - any braking energy is directly fed back into the line supply
