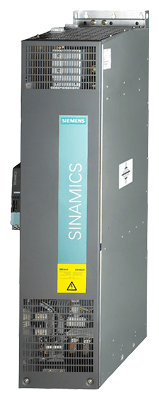

SINAMICS G130 / G150

Name: SINAMICS G130 / G150
Brand: Siemens

SINAMICS G130 / G150 are built in and cabinet converters for medium and high power ratings.

Features

Applications

Benefits

Documentation & Resources

G130 / G150 Brochure

G130/150 Manual

Overload avoidance function

Winder Application Example

Key Features

Technical specifications and capabilities

The SINAMICS G130 is a modular drive system that can be tailored to specific applications, consisting of a control unit and power module. SINAMICS G150 is a ready-to-connect AC/AC converter in a standard control cabinet. Both specially designed to meet the requirements of drives with square-wave and constant load characteristics, with medium performance requirements and without regenerative feedback capability.
G130 : 3 AC 380 to 690 V, 75 to 800 Kw
G150 : 3 AC 380 to 690 V, 110 to 2700 Kw
Frequency - 47 to 63 Hz
Vector control with encoder or V/f control

More from Siemens

Compatible with fieldbus protocols like PROFIBUS, PROFINET, EtherCAT, and Modbus, facilitating easy communication and data exchange with other devices

Safety integrated as standard- The Safety Integrated Basic Functions STO, SBC and SS1 can be operated without encoder: two safety-capable incremental encoders (HTL or TTL) are required for utilization of the Safety Integrated Extended Functions SLS, SDI and SSM

Optionally available with an encoder evaluation function of the cabinets ensure that they remain mechanically durable over their entire life cycle
