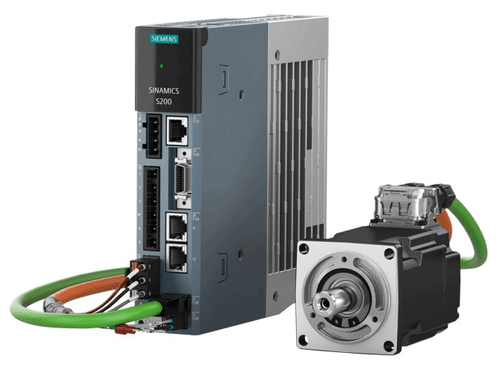

SINAMICS S200 Servo Drive system

Name: SINAMICS S200 Servo Drive system
Brand: Siemens

SINAMICS S200 servo drive system for low power range applications.

Features

Applications

Benefits

Documentation & Resources

SINAMICS S200 PROFINET/SIMOTICS S-1FL2, Operating Instructions

SINAMICS S200 PN: Position control via GSDML file with SIMATIC S7-1500

SINAMICS S200 PN commissioning via Startdrive

SINAMICS S200 PN: Torque application via Telegram 750

Key Features

Technical specifications and capabilities

The SINAMICS S200 is a low power Servo Drive system for standard applications:
The SINAMICS S200 system is designed for solutions with standard dynamics in the power range from 0.1 kW to 7 kW
EMC category C2 can be achieved with external line filter
Has an integrated brake resistor (>0.1kW) with direct control of motor holding brake
Safety functions: STO via terminal (SIL 3/ PLe)

More from Siemens

SINAMICS S200 system works with various motor range - SIMOTICS S-1FL21 Low inertia

SIMOTICS S-1FL22 Medium inertia

SIMOTICS S-1FL23 High inertia

For motor connection there are several options - Standard cable or Flexible cable, with the One-push-lock motor connection technology for low and medium inertia motors

Encoder systems: Absolute encoder single turn 17 bit/21 bit

Absolute encoder multiturn 21 bit + 12 bit

Degree of protection IP65 can be achieved (for shaft height 20/30/40 is IP54, IP65 as an option)

Drive system can be used as a part of a scalable system with SIMATIC S7-1200, SIMATIC S7-1500/T and ET200SP Open controller
