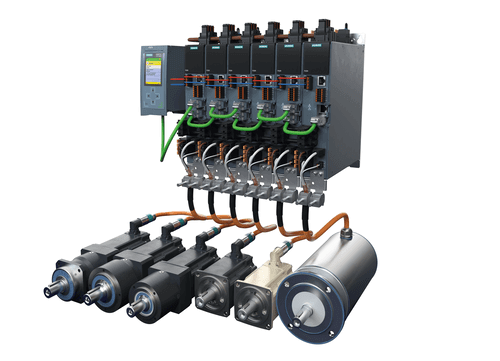

Sinamics S210
The high dynamics servo system.
9
Features
21
Applications
6
Benefits
Sign in to save products and send enquiries. Sign in
More from SiemensDocumentation & Resources
S210 Catalogue
Sign in to download documentation.
S210 Operating Instructions
Sign in to download documentation.
SIMATIC S7 1500 and SINAMICS S210 Application Example
Sign in to download documentation.
UK Declaration of Conformity
Sign in to download documentation.
Key Features
Technical specifications and capabilities
- S210 Servo Drive Voltage/Power: •1 AC 200 … 240V / 0.1 - 0.75 kW •3AC 200 … 240V / 0.24 – 4.2 kW •3AC 380 ... 480V / 0.4 – 7 kW
- Servo Motor Torques:
- SIMOTICS S-1FK2 / 1FT2: •1 AC 200 - 240 V / 0.16 Nm - 3.6 Nm •3 AC 200 - 240 V / 0.16 Nm - 40 Nm •3 AC 380 - 480 V / 1.27 Nm - 40 Nm
- SIMOTICS S-1FS2: •1 AC 200 - 240 V / 3.1 Nm •3 AC 200 - 240 V / 3.1 Nm - 14 Nm •3 AC 380 - 480 V / 3.1 Nm - 14 Nm
- SIMOTICS S-1FK2: absolute encoder singleturn 22 bit
