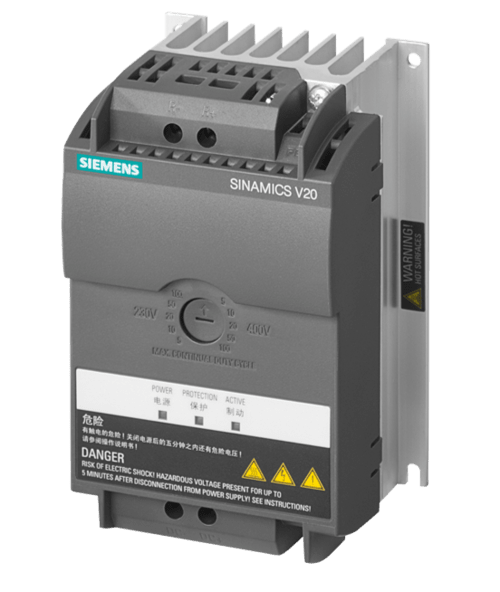

SINAMICS V20 Braking Module
Dynamic braking module for SINAMICS V20.
5
Features
3
Applications
4
Benefits
Sign in to save products and send enquiries. Sign in
More from SiemensDocumentation & Resources
V20 Braking Module Instructions Brochure
Sign in to download documentation.
V20 Braking Module Instructions
Sign in to download documentation.
Key Features
Technical specifications and capabilities
- For frame sizes FSAA to FSC (FSD and FSE already have an integrated braking unit)
- Shortens the deceleration ramp time of V20 converter
- Suitable for 230 V1 AC and 400 V3 AC
- Adjustable duty cycle from 5 % to 100 % with control knob on module
- Maximum power rating: •230V converters: 3kW with 8A •400V converters: 5.5kW with 7A
